Hello Everyone,

With the release of the AS ABAP 7.4 many new capabilities were introduced, one of them is the AMDP methodology. This methodology is transformational as developers can leverage the best of both ABAP and SQL programming language to build models and applications. SAP BW on HANA, S/4 HANA embedded BW and BW/4 HANA can also take benefit from this framework.

Traditionally, BW developers process the BEx variable processing through Customer Exit within the ABAP layer; with the introduction of HANA Exit, the Customer Exit Variable can be processed in HANA layer (Code Push-down).

Please follow the step-by-step process illustrated below to achieve the same.

  1. ZFP_C11_Q0001 Financial Planning Commitments

Version:          Manual Input Entry – Single Value – Mandatory.

Fiscal Year:     HANA Customer Exit – Single Value –Mandatory initial.

1 17 2230016

  1. Target Composite Provider ZFP_C11         Financial Planning – Commitments

  1. Source Calculation View ZS4_GL_COMMTMNTS            Financial Planning Commitments

3 12 7138749

  1. Parameters Calculation View        ZS4_GL_COMMTMNTS

The Filter Parameter defined is Single Value, this filter value will be passed from BEx variable into the Calculation View for filtering the records based on the Fiscal Year value.

10 1 1700741

  1. Enhancement Spot RSROA_VARIABLES_HANA_EXIT

Enhancement Implementation            ZBPC_POPX_HANA_CSVAR01

BADI Implementation            ZRSROA_VAR_HANA_EXIT_BADI

Class Implementation             ZCL_BPC_CL_RSROA_HANA_EXIT

5 6 9345696

  1. Class Implementation             ZCL_BPC_CL_RSROA_HANA_EXIT

  1. Method IF_RSROA_VAR_HANA_EXIT~GET_PROPERTIES

Variable that needs to be processed is “ZFISCYEAR_PCC_01”, the c_ts_vnam_index is the temporary/internal table to hold all the relevant variables and their values for further processing of “ZFISCYEAR_PCC_01” in the IF_RSROA_VAR_HANA_EXIT~PROCESS method.

7 3 3039520

Here, I_VAR_VALUE_1 is index 1 record, I_VAR_VALUE_2 is index 2 record and so on.This value in I_VAR_VALUE_2 will be passed to the where condition in the IF_RSROA_VAR_HANA_EXIT~PROCESS method.

  1. Method IF_RSROA_VAR_HANA_EXIT~PROCESS

Prompt Screen 11 2 4382930

In this method, we are selecting the first fiscal year value from the master data of the selected Version on the prompt selection screen( attached above -Prompt Screen). Also, the AMDP method is exposing the master data view on Version (this is a CDS-view on Version Master Data) after the Using statement. One can also directly refer the P-table of the Version Master Data or any ABAP tables/Views.

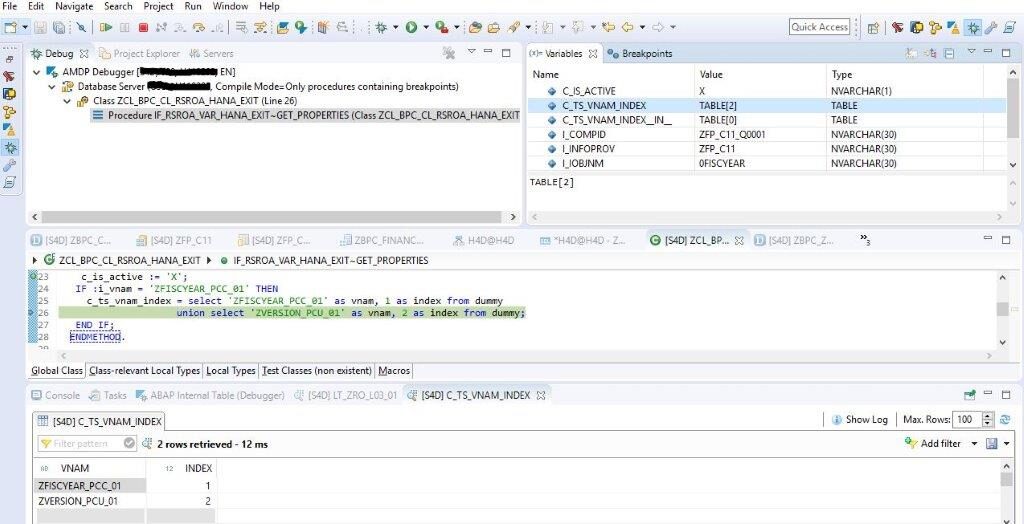

Debug-mode : I_VAR_VALUE_2 is populated based on the Version manual input variable.

15 8600820

C_VALUE  = ‘2017’ the first fiscal year of the Version ‘LTF_17-21_R1’

CDS – View

12 2 7726696

Few pointers:

  • Currently there is no concept of I_STEP in this exit processing.
  • A variable with processing type SAP HANA Exit always represents a single value. The moment when the enhancement implementation is called depends on whether the variable is input-enabled:
  • If the variable is input-enabled, the SAP HANA exit procedure is called exactly once before the variable screen. The variable is then automatically given the default values of the other variables in the procedure.
  • If the variable is not input-enabled, the SAP HANA exit procedure is called exactly once after the variable screen. The variable is then given the values from the variable screen in the procedure.
  • The system can contain no more than one BADI implementation with the value ‘X for the query/variable name combination.

Source Code

class ZCL_BPC_CL_RSROA_HANA_EXIT definition public final create public . public section. interfaces IF_BADI_INTERFACE . interfaces IF_AMDP_MARKER_HDB . interfaces IF_RSROA_VAR_HANA_EXIT . PROTECTED SECTION. PRIVATE SECTION. ENDCLASS. CLASS ZCL_BPC_CL_RSROA_HANA_EXIT IMPLEMENTATION. * ---------------------------------------------------------------------------------------+ * | Instance Public Method ZCL_BPC_CL_RSROA_HANA_EXIT->IF_RSROA_VAR_HANA_EXIT~GET_PROPERTIES * +-------------------------------------------------------------------------------------------------+ * | [--->] I_VNAM TYPE RSZVNAM * | [--->] I_VARTYP TYPE RSZVARTYP * | [--->] I_IOBJNM TYPE RSIOBJNM * | [--->] I_INFOPROV TYPE RSINFOPROV * | [--->] I_COMPID TYPE RSZCOMPID * | [<-->] C_IS_ACTIVE TYPE RS_BOOL * | [<-->] C_TS_VNAM_INDEX TYPE NT_TS_VNAM_INDEX * +-------------------------------------------------------------------------------------- METHOD IF_RSROA_VAR_HANA_EXIT~GET_PROPERTIES by database procedure for hdb language SQLSCRIPT. c_is_active := 'X'; IF :i_vnam = 'ZFISCYEAR_PCC_01' THEN c_ts_vnam_index = select 'ZFISCYEAR_PCC_01' as vnam, 1 as index from dummy union select 'ZVERSION_PCU_01' as vnam, 2 as index from dummy; END IF; ENDMETHOD. * ---------------------------------------------------------------------------------------+ * | Instance Public Method ZCL_BPC_CL_RSROA_HANA_EXIT->IF_RSROA_VAR_HANA_EXIT~PROCESS * +-------------------------------------------------------------------------------------------------+ * | [--->] I_VNAM TYPE RSZVNAM * | [--->] I_VARTYP TYPE RSZVARTYP * | [--->] I_IOBJNM TYPE RSIOBJNM * | [--->] I_INFOPROV TYPE RSINFOPROV * | [--->] I_COMPID TYPE RSZCOMPID * | [--->] I_VAR_VALUE_1 TYPE RSCHAVL * | [--->] I_VAR_VALUE_2 TYPE RSCHAVL * | [--->] I_VAR_VALUE_3 TYPE RSCHAVL * | [--->] I_VAR_VALUE_4 TYPE RSCHAVL * | [--->] I_VAR_VALUE_5 TYPE RSCHAVL * | [--->] I_VAR_VALUE_6 TYPE RSCHAVL * | [--->] I_VAR_VALUE_7 TYPE RSCHAVL * | [--->] I_VAR_VALUE_8 TYPE RSCHAVL * | [--->] I_VAR_VALUE_9 TYPE RSCHAVL * | [--->] I_VAR_VALUE_10 TYPE RSCHAVL * | [--->] I_VAR_VALUE_11 TYPE RSCHAVL * | [--->] I_VAR_VALUE_12 TYPE RSCHAVL * | [--->] I_VAR_VALUE_13 TYPE RSCHAVL * | [--->] I_VAR_VALUE_14 TYPE RSCHAVL * | [--->] I_VAR_VALUE_15 TYPE RSCHAVL * | [--->] I_VAR_VALUE_16 TYPE RSCHAVL * | [--->] I_VAR_VALUE_17 TYPE RSCHAVL * | [--->] I_VAR_VALUE_18 TYPE RSCHAVL * | [--->] I_VAR_VALUE_19 TYPE RSCHAVL * | [--->] I_VAR_VALUE_20 TYPE RSCHAVL * | [<-->] C_VALUE TYPE RSCHAVL * +-------------------------------------------------------------------------------------- METHOD IF_RSROA_VAR_HANA_EXIT~PROCESS by database procedure for hdb language SQLSCRIPT using ZBPCZVERSION. DECLARE LV_LTF_FFY NVARCHAR (4); SELECT ZFIRSTFY INTO LV_LTF_FFY FROM ZBPCZVERSION WHERE ZVERSION =:i_var_value_2 AND OBJVERS = 'A'; c_value:= ''; IF :i_vnam = 'ZFISCYEAR_PCC_01' THEN c_value:= :LV_LTF_FFY; ELSE END IF;

SAP Link :

https://help.sap.com/viewer/04030263a0d041309a039fa3ea586720/7.5.6/en-US/b77f3073e9d842d6959e03e74dcefa09.html

Hope the above illustrated example will help developers in implementing the same.

Thanks.
