NOTE: ASE license expiry

If you are installing the developer edition for the first time:

The ASE license available with this version is obsolete. We have created a brand new developer edition, 751, with a license valid until March 2018. This is available here:

SAP AS ABAP 751 SP02 Developer Edition To Download

The only reason for installing 750 is if you want SAP SLT.

If you have already installed the developer edition successfully (ie before July 2017), and just need to update the license:

OR if you need SAP SLT:

New ASE license is available here: Renew ASE License: SAP Document Center

(This SAP Document Center folder includes instructions.)

(6th July, 2017 – I’ll leave this here for the moment. I have also included it under “ASE license expiry in the Concise Installation Guide.)



Linux for Newbies

So, you want to install a developer edition of a SAP NetWeaver ABAP AS. It should sit on a Linux distribution, in a virtual box.
However, you’re a Linux newbie.
FEAR NOT!
We have created a genuine, step-by-step guide, with loads of screenshots to help you on your way.
In this example, we will focus on the openSUSe distribution.

This guide is part of a series for anyone who wants a free trial version of an SAP NetWeaver ABAP AS. To find out more about this whole series, see SAP NW 750 SP2 ABAP AS Available to Download!

A. Preparation

  1. Download the latest released version of Oracle VirtualBox from https://www.virtualbox.org/wiki/Downloads for your Operating system.
  2. Download openSUSE Leap 42.1 in your local machine (64 bit, released version) from https://software.opensuse.org/421/en
  3. Make sure the relevant ABAP download files (“abap.rar”) are on your local hard drive.

B. Create VirtualBox instance; install openSUSE:

    1. Start VirtualBox and create a new VirtualBox instance by clicking the New button:
    2. Enter the following values:
      • Name : MyVirtualLinux (for example)
      • Type : Linux
      • Version: openSUSE (64 bit) -> Next
      • Select Memory size : 6 GB  -> Next
      • Hard disk: Create a virtual hard disk now -> Next
      • Hard disk file type: VHD (Virtual Hard Disk) -> Next
      • Storage on physical hard disk: Dynamically allocated -> Next
      • File location and size: 100 GB
      • Choose Create.

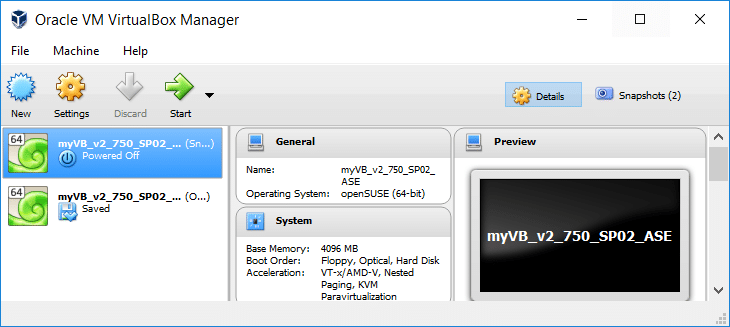

    3. Again in the VirtualBox Manager, click on Start to start the VirtualBox:
    4. In the dialog that appears, navigate to the downloaded openSuse installation file which you downloaded in Step 2, eg openSUSE-Leap-42.1-DVD-x86_64.iso.Then select this drive, choose OK:
    5. Now choose Installation (using keyboard, not mouse):
    6. Important: Choose language and keyboard layout (test keyboard).
      NOTE: We have only tested the US English-language version. If you have problems, please use the English version.
      • Accept the License Agreement by choosing Next.
      • In Installation Options, leave the 2 options unchecked, and choose Next:
      • In Suggested Partitioning, choose Edit Proposal Settings and enter the following:
        • File System for Root partitionin: choose  Ext4 from the drop-down box.
        • Uncheck Propose Separate Home Partition
          (This step is needed so that SUSE installation creates only one drive but does not create 2 drives (Home and Extension) where Home has less space to continue the ABAP installation.)
        • (Optional: Enlarged Swap for Suspend – I left it unchecked.)
      • Choose Ok, -> Next
      • Select Region and Timezone -> Next
      • In Desktop Selection, choose GNOME desktop -> Next
      • Enter:
        • Your full name
        • (Create a ) User name
        • Create a Master password, confirm it -> Next
          (
          I ticked Use this password for system administrator and Automatic Login. Leave the authentication method and encryption method as they are.
          The password should be at least 7 characters.)
    7. IMPORTANT: In Installation Settings, do not choose Install yet! You need to make settings:
      Scroll down to find Firewall and SSH.
      • Disable Firewall
      • Enable SSH service:
    8. Click on Install and Confirm again to Install the Operating System.The Linux operating system will install (yes!)

C. Prepare openSUSE system for ABAP installation

In this section, we will make some settings in the openSUSE system to prepare it for the ABAP installtion: Proxy settings; extract the ABAP .rar files; automount the folder containing these .rar files; install the uuidd daemon; change the hostname; assign root privileges to the install script.

  1. If you have successfully installed the openSUSE operating system, you will see something like this:
  2. Boot up the system by choosing the first option, “Boot from Hard Disk.”Now, we just have these settings before we install the ABAP server.
  3. Change Proxy settings if you are behind a proxy:
    • Open Activities and enter “N” as the search term.
      The system returns something like this:
    • Choose Network.
      In the dialog that opens, choose Network Proxy, then choose Manual.
    • Change the http / https proxy settings according to your company requirements and set the port to 8080:
  4. Now we want to enter some commands using a tool called Xterm.
    (Background note: Technically speaking, we are interacting with the shell, a program that passes keyboard commands to the operating system. We are interacting with the shell using a terminal emulator, called Xterm. If these terms are unfamiliar, I would strongly recommend William Schotts’ The Linux Command Line (free PDF)).
    • Again, choose Activities, then enter “X” as the search term.
    • Choose Xterm.

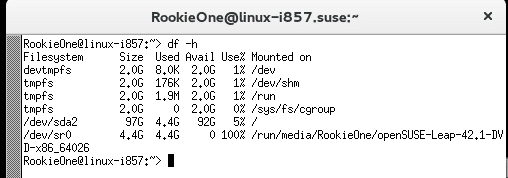

    • Check used memory by typing df -h :

      Minimum space in home directory should 33 GB to avoud memory errors during installation. (In this example, mine is 92G, or 5%.)
  5. AND NOW…, it is time to download and extract the abap rar files to a local folder.
    First, so that the Linux system can access this folder, we need to register it for auto-mount.
  6. IMPORTANT: Make sure your Linux system is up and running.
    • Select the folder, then choose Settings, then choose Shared Folders.
    • Add a new folder to automount, by choosing the plus icon to the right:
    • In the dialog that appears, navigate to the folder that contains the ABAP installation.
    • Change the folder name to s4installer. (You will need to enter this folder name manually later, so using this alias is less error-prone than trying to remember the complete path.):
    • Choose OK, OK.
    • IMPORTANT: Reboot the Linux system.
  7. Now we are going to change some settings, before installing the uuidd daemon. This daemen provides universal unique identifiers – essential for creating database keys. (See SAP Note 1310037 for more details.)
    (Note: You only need to do this step if you are using a proxy.)
    • Open the system tool YaST (choose Activities -> enter “Y” as search term…).
    • Enter your root password (ie the one you use to log on to the Linux system.)
    • On the left, choose Software .
    • Scroll down on the right-hand side and choose Proxy.
    • CHange the http settings, tick Use same for all, then test proxy.
    • Choose OK, OK.
  8. Now we are going to install the uuidd daemon.
    • Still in YaST, scroll back up and select Online Update.
    • Open the Search tab, and and enter the search term “uuidd”, then choose Search.
    • Select “uuidd”, then choose Accept.
      YaST will install uuidd, then reboot.
    • End YaST.
  9. Now we are going to start the uuidd service in Xterm.
    • Open Xterm.
    • Start uuidd, by entering:  sudo service uuidd start
    • Enter the root’s password.
      (
      Note: sudo = “superuser do” ie you need to be a superuser to execute this command. Thus you also have enter the root’s password.)
    • Check if the service has started by entering: sudo service –status-all |grep uuidd
    • Your Xterm will look like this:
  10. Now, still in Xterm we will change the hostname, by entering sudo vi /etc/hostname.
    • Insert the hostname by entering i (for “insert”). It should look something like this:
    • Save your changes by hitting the ESC key, then :wq (ie “colon”, “Write”, “Quit”)
    • Check by entering sudo cat /etc/hostname
    • Restart network by entering: sudo rcnetwork restart
    • Check that the hostname has changed by entering hostname
  11. Now we will map hosts to the new hostname.
    • Check the IP address by entering sudo ifconfig
    • Open the hosts file by entering sudo vi /etc/hosts
    • Using this IP address, add a new entry of the form:
      .dummy.nodomain
      (Here it is: 10.0.2.15 vhcalnplci vhcalnplci.dummy.nodomain )
    • (To add a new entry, proceed as before:
      • Enter
      • Enter  10.0.2.15 vhcalnplci vhcalnplci.dummy.nodomain
      • Hit ESC
      • Enter :wq
    • Save the file hosts
    • Check the changes by using the cat command: sudo cat /etc/hosts
  12. And now…(last step before we install), we will assign root privileges, by entering sudo -i.
    • Enter the root’s password.
    • Navigate to the shared folder with the ABAP installation: cd /media/sf_s4installer
    • Change the access rights of the install script: chmod +x install.sh

D. Install ABAP

  1. FINALLY, we run the installation, by entering the command ./install.sh
    • Read and accept the license agreement
    • When prompted for the OS users password enter your master password of the virtual Linux OS instance twice
    • Be patient, this will take a while…
    • If the installation is successful, you will see something like this:
  2. Ok, we’re almost done. We just need to enter the right proxy settings so that SAP GUI, ABAP in Eclipse etc can find your ABAP system:
    • In Oracle VirtualBox Manager, select the VirtualBox with the installed ABAP system on it, then choose Settings from the context menu.
    • From the left-hand menu, choose Network.
    • Open Advanced, then choose Port Forwarding.
    • In the dialog that appears, enter the following settings:
      Name Protocol Host IP Host Port Guest IP Guest Port
      HTTP TCP 127.0.0.1 8000 10.0.2.15 8000
      HTTPS TCP 127.0.0.1 44300 10.0.2.15 44300
      RFC TCP 127.0.0.1 3300 10.0.2.15 3300
      SAPGUI TCP 127.0.0.1 3200 10.0.2.15 3200

And that’s it! Hope this helps. Feel free to comment below.
We have also provided some additional info (admin, starting / stopping the server, created directories and users, etc) in the Concise Installation Guide.

Further reading:

The first thing to do is to make yourself familiar with the Linux command line (steps 17-21). I found the most helpful guide here:
The Linux Command Line, by William E Shotts, Jr (PDF)

For openSUSE support: openSUSE forums

New NetWeaver Information at SAP.com
