Create Dynamic resizable Datamatrix barcode / images / Charts in Adobe Forms (Part 1 )
Dear all,
Create Dynamic resizable Datamatrix barcode: Using the default barcode option inside ADOBE forms comes with lots of limitations.
One major issue is the lack of scaling the barcodes to a large format.
The default usage of Adobe Forms inside SAP is also very complicated.
With this tutorial I want to provide you a way of having the freedom to use any kind of image/ barcode inside your ADOBE Forms / Smartforms.
In this Tutorial I will focus on the usage of barcodes inside your Adobe forms.
Part 2 will show you an example of using Dynamic Charts based on the Google Maps API and using Web images inside your Forms.
One of the major advantages about this technique is the flexibility you achieve by using it.
Lots of other options can be implemented by using this.
Procedure
In the next Chapters I will give you a clear explanation about how to use and implement this technique.
Transactions used:
- Development : se80
- Adobe Forms : SFP
1.Create Adobe Form Interface
Transaction: SFP

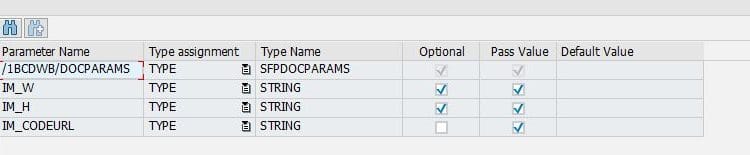

Define 3 import parameters inside your interface:
2. Create Adobe Form
Use the previously define interface.
Create a Graphic inside the context tab
Create the two variables (by drag&drop from the context node)
Set the URL of this Graphic component equal to the import parameter
(Can be done by drag and drop from import list right to the Graphic URL field)
Now one thing left to do is drag and drop the Graphic in the layout view to the Adobe Form and set the parameter “Embed Image Data” to checked.
This is important because otherwise the image won’t be embedded when save the PDF to local PC.
To make sure the image has the width and height you entered on the main screen we will need to use some Formcalc inside our Adobe Form.
----- data.#subform[0].GRAPHIC[0]::initialize: - (JavaScript, client) ------------------------------ data.#subform[0].GRAPHIC.w = $record.IM_W data.#subform[0].GRAPHIC.h = $record.IM_H; Now I will go through the code to create a dynamic chart and start using it inside an Adobe Form.
3. Code
To make the code easy to read I divided the process in 5 steps:
- create_chart : Creating the barcode dynamical should be done down here
- download_chart : Download the barcode to the requested type
- convert_chart : Convert the barcode to a xstring to store
- upload_chart : Upload the image to the icm cache
- print_adobe : Call the requested adobe form
These actions are coded inside different forms that will be called form the Main screen of the program and are stored in a separate include file.
Main Program
In this program we will define the top include and form include.
At the start of-selection we will start the process from creating a dynamic barcode to display the Adobe Form.
REPORT ZTRAINING_FPT_BAR.
INCLUDE ZTRAINING_FPT_BAR_TOP. ” global Data
INCLUDE ZTRAINING_FPT_BAR_FORM. “Forms
SELECTION-SCREEN BEGIN OF BLOCK program WITH FRAME TITLE title1.
SELECTION-SCREEN BEGIN OF BLOCK code1 WITH FRAME TITLE title2.
PARAMETERS:pc_value TYPE string DEFAULT ‘123456789’.
SELECTION-SCREEN END OF BLOCK code1.
SELECTION-SCREEN BEGIN OF BLOCK code2 WITH FRAME TITLE title3.
PARAMETERS:pc_h TYPE string DEFAULT ‘4,5’,
pc_w TYPE string DEFAULT ‘4,5’ .
SELECT IO-SCREEN END OF BLOCK code2.
SELECTION-SCREEN END OF BLOCK program.
INITIALIZATION.
title1 = ‘Dynamic Barcode resizer’.
title2 = ‘Please enter a value for the barcode’.
title3 = ‘Please enter a height and width for the barcode (in inch)’.
START-OF-SELECTION .
“Create code 1
PERFORM create_code USING
pc_value
CHANGING
url1. “Creating the chart dynamical should be done down here
PERFORM download_code using
url1. “Download the chart to the requested type
PERFORM convert_code. “Convert the chart to a xstring to store
PERFORM upload_code CHANGING
l_display_url1
l_guid1. “Upload the image to the icm cache
PERFORM print_adobe USING l_display_url1
pc_w
pc_h.
Top Include
In this file all the needed variables to create the Adobe form can be found.
I have tried to structure them in the right way so you can figure out quite fast where they are used.
“Class references
DATA : http_client TYPE REF TO if_http_client.
DATA: g_html_control TYPE REF TO cl_gui_html_viewer .
DATA: l_igs_imgconv TYPE REF TO cl_igs_image_converter,
l_igs_ce TYPE REF TO cl_igs_chart_engine,
l_cached_response TYPE REF TO if_http_response.
“Added Vars to store the chart in the system.
DATA: i_html TYPE w3htmltabtype,
g_url TYPE w3url,
l_imagemap_length TYPE w3param-cont_len,
l_image_mime TYPE w3mimetabtype,
l_image_size TYPE w3param-cont_len,
l_image_type TYPE w3param-cont_type,
l_img_blob TYPE w3mimetabtype,
l_img_size TYPE w3param-cont_len,
l_bmp_xstream TYPE xstring,
l_app_type TYPE string,
l_guid1 TYPE guid_32,
lv_host TYPE string,
lv_port TYPE string,
lv_protocol TYPE string,
l_display_url1 TYPE string.
“Vars needed to convert to mimetabtype
DATA : url1 TYPE String.
DATA : url2 TYPE String.
DATA : l_str_length TYPE i.
DATA : content TYPE xstring.
DATA : mime TYPE w3mimetabtype.
DATA : l_content_length TYPE i.
“Vars needed to open the adobe form
DATA: fm_name TYPE rs38l_fnam, ” CHAR 30 0 Name of Function Module
fp_docparams TYPE sfpdocparams, ” Structure SFPDOCPARAMS Short Description Form Parameters for Form Processing
fp_outputparams TYPE sfpoutputparams.
Form Include
Create_code
In this step we will create the Barcode based on the input at the selection screen.
For this we will be using the following API that can be found at :QR Code Generator and DataMatrix Barcode Generator ( Appreciate the work they put into it so donations are welcome )
FORM create_code
USING
im_value TYPE string
CHANGING
url TYPE string.
“Local data
DATA: lv_html TYPE string.
CONCATENATE
‘’
‘’
‘
INTO lv_html.
CONCATENATE ‘https://it.visualead.com:8080/invx.com/code/datamatrix/?code=‘
im_value
‘&fg=%23000000&bg=%23ffffff&width=352&height=352’
INTO url.
CONCATENATE
lv_html
url
‘” />’
‘’
‘’
INTO lv_html .
“Store the link in table
CALL FUNCTION ‘HR_EFI_CONVERT_STRING_TO_TABLE’
EXPORTING
i_string = lv_html
i_tabline_length = 255
TABLES
et_table = i_html.
ENDFORM. “Create_code
Download Chart
To be able to use the Graphic in the system we first need to download the picture as a mimetabtype.
For I created a http_client instance to fetch the object. By calling the SAP FM “RSFO_XSTIRNG_TO_MIME” we can save the chart as a mimetabtype.
FORM download_code USING url.
CLEAR:http_client.
CLEAR: content.
CLEAR: l_str_length.
CLEAR: mime.
CALL METHOD cl_http_client=>create_by_url
EXPORTING
url = url
IMPORTING
client = http_client
EXCEPTIONS
argument_not_found = 1
plugin_not_active = 2
internal_error = 3
OTHERS = 4.
IF sy-subrc = 0.
http_client->send( ).
http_client->receive( ).
content = http_client->response->get_data( ).
http_client->close( ).
l_str_length = XSTRLEN( content ).
CALL FUNCTION ‘RSFO_XSTRING_TO_MIME’
EXPORTING
c_xstring = content
i_length = l_str_length
TABLES
c_t_mime = mime.
ENDIF.
ENDFORM. “DOWNLOAD_CODE
Convert_code
In SAP we cannot reference the mimetabtype directly to a graphic object.
For this we need to convert the mimetabtype to an Xstring.
SAP already provided a FM to do this “SCMS_BINARY_XSTIRNG”
FORM convert_code .
CLEAR: l_bmp_xstream.
CLEAR: l_igs_imgconv.
CLEAR: l_img_blob.
CREATE OBJECT l_igs_imgconv.
l_igs_imgconv->input = ‘image/png’.
l_igs_imgconv->output = ‘image/bmp’.
CALL METHOD l_igs_imgconv->set_image
EXPORTING
blob = mime
blob_size = l_content_length.
CALL METHOD l_igs_imgconv->execute
EXCEPTIONS
communication_error = 1
internal_error = 2
external_error = 3
OTHERS = 4.
IF sy-subrc IS INITIAL.
CALL METHOD l_igs_imgconv->get_image
IMPORTING
blob = l_img_blob
blob_size = l_img_size.
CALL FUNCTION ‘SCMS_BINARY_TO_XSTRING’
EXPORTING
input_length = l_img_size
IMPORTING
buffer = l_bmp_xstream
TABLES
binary_tab = l_img_blob
EXCEPTIONS
FAILED = 1
OTHERS = 2.
IF sy-subrc <> 0.
MESSAGE ‘Problem with the conversion ‘ TYPE ‘E’.
ENDIF.
ENDIF.
ENDFORM. ” CONVERT_CODE
After running the previous routine we can use the Xstring in SAP screens.
Unfortunately to embed the images/charts inside an ADOBE FORM we need to upload the object to the ICM server.
For this reason the fourth form method “upload_chart” is created.
Upload_code
This method will upload the image to the ICM cache server for a specified time.
This gives us the possibility to use the images inside ADOBE FORMS.
The objects will be automatically released from the cache server after the timeout expires. (The timeout time is a personal decision)
FORM upload_code CHANGING l_display_url
l_guid.
CLEAR: l_cached_response.
CREATE OBJECT l_cached_response
TYPE
cl_http_response
EXPORTING
add_c_msg = 1.
l_cached_response->set_data( l_bmp_xstream ).
l_app_type = ‘image/jpeg’.
l_cached_response->set_header_field(
name = if_http_header_fields=>content_type
value = l_app_type ).
“Setting the Response Status.
l_cached_response->set_status( code = 200
reason = ‘OK’).
“Set the cached timeout
l_cached_response->server_cache_expire_rel( expires_rel = 3600 ).
” Create a unique URL for the object
CALL FUNCTION ‘GUID_CREATE’
IMPORTING
ev_guid_32 = l_guid.
” Getting the host , port and Protocol of the server
CALL METHOD cl_http_server=>get_location
EXPORTING
server = cl_wdr_task=>server
IMPORTING
host = lv_host
port = lv_port
out_protocol = lv_protocol.
“Create the store url
CONCATENATE
lv_protocol ‘://’ lv_host ‘:’ lv_port ‘/sap/bc/fp/’
l_guid ‘.JPG’
INTO l_display_url.
” Upload the generated URL in the cache
cl_http_server=>server_cache_upload( url = l_display_url
response = l_cached_response ).
ENDFORM. “UPLOAD_CODE
After this routine, the image/ chart will be available on the ICM Cache server and can be embedded inside the Adobe Form. In my Demo Program I created another Form to call the Adobe Form and ask you for a print preview.
This can also be automated by using job profiles ( * will create another post about job profiles in future)
Print_Adobe
This form will call the previously created Adobe Form and pass the requested import parameters to it.
FORM print_adobe USING l_display_url1
im_w
im_h.
“Concatenate the inch to the value
CONCATENATE im_w ‘in’ INTO im_w.
CONCATENATE im_h ‘in’ INTO im_h.
“Passed as a string so needed to remove the empty spaces and replace the , with .
REPLACE all OCCURRENCES OF ‘,’ in im_w WITH ‘.’ .
REPLACE all OCCURRENCES OF ‘,’ in im_h WITH ‘.’ .
CONDENSE im_w NO-GAPS .
CONDENSE im_h NO-GAPS.
“Sets the output parameters and opens the spool job
CALL FUNCTION ‘FP_JOB_OPEN’ “& Form Processing: Call Form
CHANGING
ie_outputparams = fp_outputparams
EXCEPTIONS
cancel = 1
usage_error = 2
system_error = 3
internal_error = 4
OTHERS = 5.
IF sy-subrc <> 0.
MESSAGE ‘Proble with Adobe PDF’ TYPE ‘A’.
ENDIF.
” Get the name of the generated function module
CALL FUNCTION ‘FP_FUNCTION_MODULE_NAME’ “& Form Processing Generation
EXPORTING
i_name = ‘ZTRAINING_FPT_BEK_BAR_FORM’
IMPORTING
e_funcname = fm_name.
IF sy-subrc <> 0.
MESSAGE ‘Proble with Adobe PDF’ TYPE ‘A’.
ENDIF.
” Language and country setting (here US as an example)
fp_docparams-langu = ‘E’.
fp_docparams-country = ‘US’<span
