SAP PI Mail attachment to File Overview:

  • Business scenario, where it is required to extract mail attachments and store it to some SAP directory.
  • Here, one common mail-id is been used by a group of users to send mail-attachments from their respective ends.
  • There may be two cases:
    1. One attachment per unread Mail
    2. Multiple attachment per unread Mail

 SAP PI Scenario details:

  • One SAP-PI’s “Mail to File Inbound Asynchronous” interface will be created to achieve above requirement.
  • Using Mail Sender Adapter, interface will read all mail with their attachments.
  • Using File Receiver Adapter, interface will download attachments to the directory.
  • Here only Integration Directory’s configurational objects are required.
  • As no message transformation is in scope, so Integration Repository objects are not required.

Pre-requisites:

  • SAP-PI should have SMTP mail server accessibility
  • SAP-PI should have access to SAP ECC application server’s directory

Steps to develop Interface in SAP-PI:

In SAP-PI’s Integration Directory, we need to follow below steps to develop “Configuration Scenario” of “Mail to File Inbound Asynchronous” interface:

Note: Object naming conventions is for example purpose, it can be as per client’s conventions

[I]. Business Components: Create two business components, one for sender and other for receiver

  1. Sender Business Components
    • This will work on behalf on sender-side while reading Mails
    • Name it as SENDER_BS_COMP
  2. Receiver Business Components
    • This will work on behalf on receiver-side while storing attachments to directory Mails
    • Name it as RECEIVER_BS_COMP

[II]. Communication Channels:

   Channel config for “Case-1: One attachment per unread Mail“:

Here, with help of below config, one attachment can be easily stored to folder.

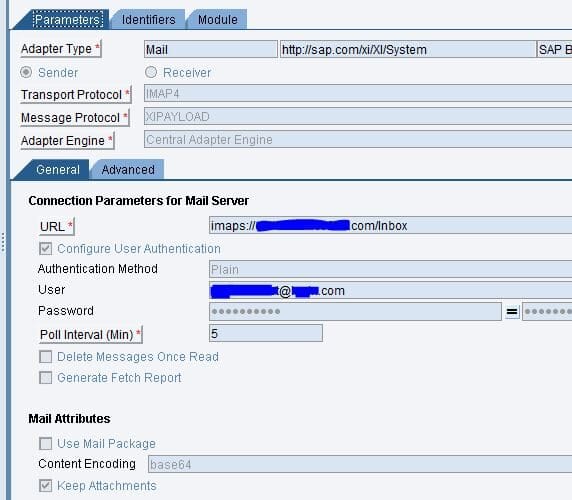

  1. Sender Mail Adapter Communication Channel

Here, we use ‘Mail Adapter’ to read mails from mail server and configure below details in channel “SENDER_MAIL_CHNL”:

    • We use ‘Transport Protocol’ IMAP4 (Internet Message Access Protocol) to retrieve e-mails from a folder of an e-mail server.
    • It reads mail from INBOX folder and post read, mark its status to ‘read’.
    • Using ‘Message Protocol’ XIPAYLOAD, The content of the e-mail is put in the payload of the XI/PI message.
    • M 01 9044487
    • Enable ‘Keep Attachments’ functionality while reading mails.
    • Enable ‘Set Adapter-Specific Message Attributes’ functionality while reading mails, this is required to get header details of message. From header details we extract attachment names.
    • As we need to extract all attachments of one mail, this can be achieved with help of below Module Beans:
      1. Module Bean ‘PayloadSwapBean
        • With help of this bean, we swap mai payload with 1st attachment
        • And with help of File-Receiver channel we will download it to folder
      2. Module Bean ‘MultipartHeaderBean
        • With help of this bean, we adds the following values in dynamic configuration:
        • Attributes of other payloads that are appended to the XI message as an additional attachment
      3. Module Bean ‘DynamicConfigurationBean
        • We use this bean in File-Receiver channel.
        • This will help to download rest attachment (other than 1st attachment)

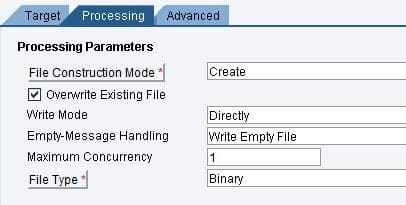

  1. Receiver File Adapter Communication Channel

Here, we use ‘File Adapter’ to download attachment to folder and configure below details in channel “RECEIVER_FILE_CHNL”:

    • 1st attachment is already ready to get downloaded, which is swapped with main-payload
    • Using ‘DynamicConfigurationBean’, get 1st attachment’s original name
    • Please note: Here, with this config we can not store multiple attachments from one mail to folder
    • Here ‘File Name Scheme’ is referring to variable which is defined in ‘Variable Substitution’
    • F 01 4984908
    • Define a variable ‘fname’ using Variable Substitution, which stores message interface name.
    • F 03 1 1415142
    • Use Module Bean ‘DynamicConfigurationBean’, to get 1st attachment’s original name using logic “Mail  Part[1].Content-Description” and set it to message interface name

   Channel config for “Case-2: Multiple attachment per unread Mail“:

Here, we use a custom java adapter module at File-Receiver-Channel side.

  • For this case, we create a custom java adapter module, which will have below functionalities:
    • Read all attachments with their original names
    • and store them to sap directory
    • This module will require one user input as ‘SapDirPath’ which is sap directory path location, where attachments will be saved
    • This module will be used as Module parameters in ‘Receiver File Adapter communication Channel’
  • To create this custom java adapter module, please follow link as :
    • SAP PI custom adapter module – store multiple attachments
  •  Sender/Receiver channel configurations are as below:

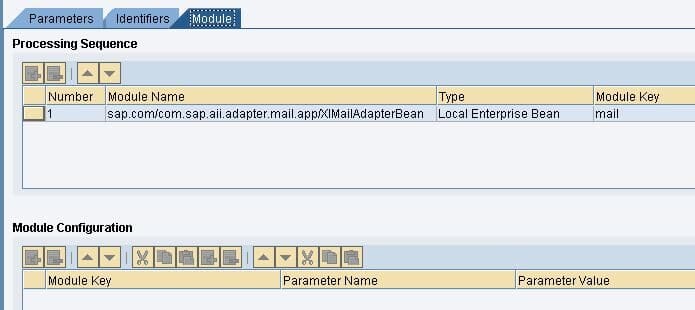

  1. Sender Mail Adapter Communication Channel Config
    • Mailchnl 2 9893810
  2. Receiver File Adapter Communication Channel Config
    • Here, using File Receiver, one Temp file (Test.dat) will be generated in directory, which will keep on over-writing every time. This file is of no business use, it is used only to complete channel config.
    • Rcvchnl 1.2 1 2756193
    • Now one custom adapter module will be used, which will have below functionalities:
      • Read all incoming attachments from inbound message
      • Store it to folder path with original attachment names
      • This module requires one input which is sap directory path location ‘SapDirPath’
    • Below Module configurations required in File-Receiver-Channel for custom adapter module access, that require input as FolderPath
    • And below is the test screen which depicts how multiple attachments from one unread mail gets extracted and store to sap directory
    • Incoming Mail:
    • Mail 1 9984383
    • Below is PI’s SXMB_MONI log, in which Mail adapter has forwarded all attachments to receiver channel side

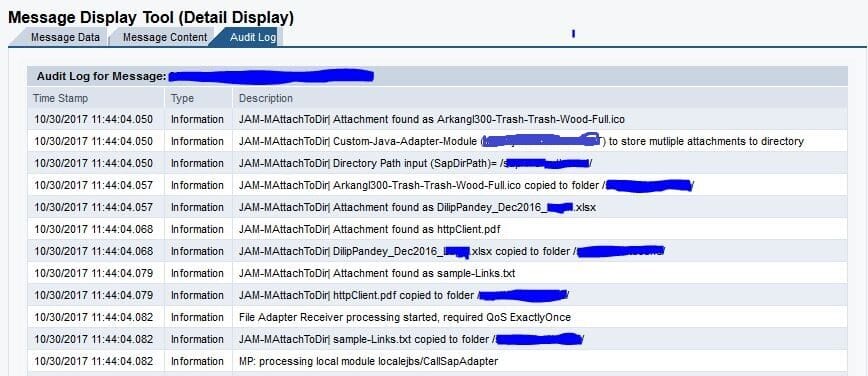

    • Below is log of File-Receiver-Channel, in which Custom adapter module’s log can be seen
    • and at last, screen of sap directory where files are been stored by custom module
    • Folder 8625934

[III]. Receiver Determination

  • A receiver determinationis required to specify the receiver or receivers of the message, as well as conditions for the forwarding of the message to the receiver or receivers
  • Here we create it with below parameters:
Sender
Communication Component SENDER_BS_COMP
Interface INT_MailToFile
Namespace NM_MailToFile
Receiver
Communication Component  *
Configured Receiver RECEIVER_BS_COMP

[IV]. Interface Determination

  • An interface determination is required to specify the inbound interface of a specified receiver that a message is to be sent to. We can also define mappings here, if required.
  • Here we create it with below parameters:
Sender
Communication Component SENDER_BS_COMP
Interface INT_MailToFile
Namespace NM_MailToFile
Receiver
Communication Component RECEIVER_BS_COMP
Receiver Interfaces
Name INT_MailToFile
Namespace NM_MailToFile

[V]. Sender Agreement

  • A Sender Agreement is required to configure the inbound processingof a message.
  • Here we create it with below parameters details:
Sender
Communication Component SENDER_BS_COMP
Interface INT_MailToFile
Namespace NM_MailToFile
Receiver
Communication Component
Sender Communication Channel SENDER_MAIL_CHNL

[VI]. Receiver Agreement

  • A Receiver Agreement is required to configure the outbound processingof a message.
  • Here we create it with below parameters details:
Sender
Communication Component SENDER_BS_COMP
Interface INT_MailToFile
Namespace NM_MailToFile
Receiver
Communication Component
Receiver Communication Channel RECEIVER_FILE_CHNL
